Sale!
VAOM 3G2DLX

VAOM-3G2DLX-HV

REGULAR PRICE: $3,767.00
SALE PRICE $2,899.00

This VAOM-3G2DLX-HV is the Professional guitar that folds and ready to hit the stage. It features the Graphtech upgrade package including Gold Locking Ratio Tuners, TusqXL Captured Nut, and Tusq Saddle – PLUS –  The HyVibe System – installed and ready to go! Read more and watch the video below.
Only available in right-hand model. Includes the Deluxe Voyage Case.

Currently unavailable or out of stock

SKU: VAOM-3NADLX-HV Categories: DLX-HyVibe, OM-Style, Premier Series
  • Description
  • Specifications
  • HyVibe System
  • Watch

Description

The Voyage Air – HyVibe SMART guitar that folds in half & fits in its own backpack! This VAOM-3G2DLX-HV is the Professional guitar that folds and ready to hit the stage. It features the Graphtech upgrade package including Gold Locking Ratio Tuners, TusqXL Captured Nut, and Tusq Saddle – PLUS –  The HyVibe System!

Every brand has a top of the line. For Voyage Air, that is the VAOM-3G2DLX, the Professional guitar that folds. This instrument is both a strummer and a fingerstyle players dream. Featuring a slightly wider 1-3/4″ fretboard that makes it easy to play fast, intricate passages and a cutaway design of the body affords easy reach to the highest frets.

The VAOM-3G2DLX is a full-size traditional “OM” style guitar crafted of the finest tonewoods: Solid Ovangkol for the back and sides, Solid Sitka Spruce for the top, and Solid African Mahogany for the neck, along with a solid Laurel fretboard.  The back and sides make for a deep and articulated resonance to the tone, and the Solid Sitka Spruce top brings on soaring sustain, clarity of tone and harmonics. Players of all levels are constantly surprised and blown away by the depth of the tone from our VAOM-3G2DLX!

The VAOM-3G2DLX, though brand new, will fast become a favorite on the stage and in the studio – it easily compares with the finest offerings of the other Major Brand manufacturers. The no-compromise construction includes deluxe appointments like an Abalone rosette, inlaid green Abalone position markers on the fretboard, gold-plated precision tuners with ebonized pegs, and a solid bone compensated bridge/saddle. The VAOM-3G2DLX is beautiful and easy to play, yet with a distinct sonic signature that only comes from a hand built solid body.

The price includes the Deluxe Voyager backpack case that is lightweight and tough. You can also purchase the add-on accessory pouch that features a zippered laptop/accessory pocket for all your musical needs. The Voyage Air is the only full size guitar that fits in its own backpack case – You can now take you guitar virtually anywhere and – Play. Fold. Travel.

See more on our YouTube Channel

Specifications

Weight: 13 lbs
Shipping 24 × 18 × 12 in
NOTE: The above specs are of the guitar/case, in the box, with packing material – as it is shipped.


Dimensions
• Neck Width At Nut – 1 3/4″
• Neck Width At 12Th Fret – 2 1/8″
• String Spacing At Saddle – 2 3/32″
• Scale – 25 ½”
• Overall Length – 40″
• Body Length – 20″
• Lower Bout – 15″
• Upper Bout – 11 1/8″
• Soundhole – 3 7/8″

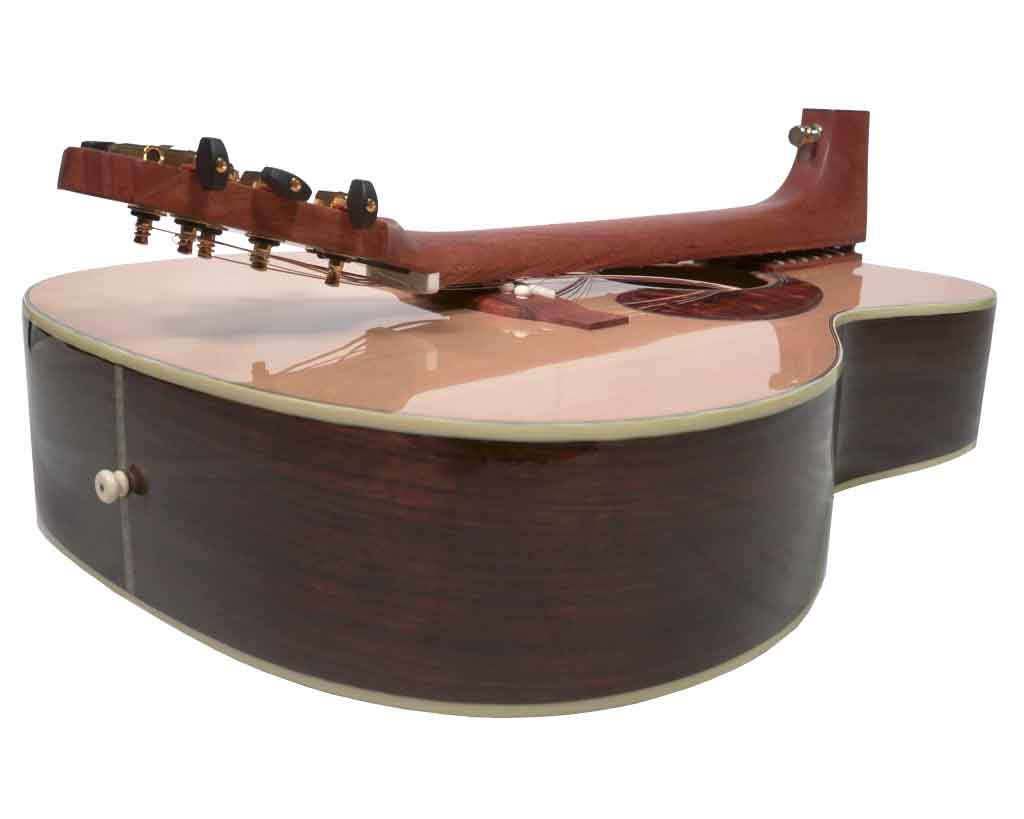

• Folded – 20″ X 15″ X 6″


Additional Info
• Traditional ‘OM-Style’ Body Shape– 000 with cutaway
• Solid Sitka Spruce Top w/ Scalloped X-brace
• Solid Tonewood Ovangkol Back and Sides
• Protective High-Gloss finish
• Mahogany Neck w/ Laurel Fingerboard and Bridge
• Dot Inlay in Prewar-style staggered sizes
• Compensated Bone Saddle
• Abalone Position Markers
• Dark Brown Tortoise-style pick guard
• Grained Ivoroid body binding
• Delicate 2-ring soundhole rosette with hand-inlaid abalone center ring
• Decorative back center-stripe
• High Quality gold plated tuners with ebonized buttons
• Highly Polished premium frets
• Proprietary Voyage Air Captured Nut

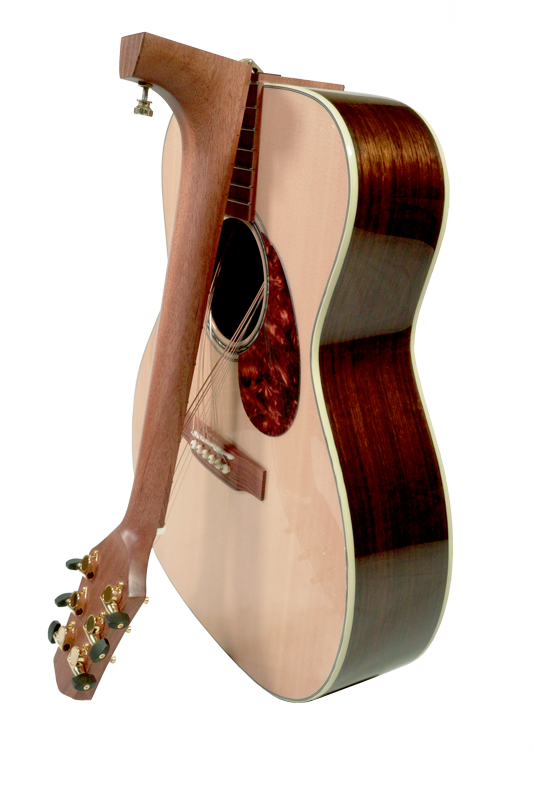

• Patented Folding Neck-Hinge System
• 25.5” Scale Length
• Traditional 1 3/4” Nut width
• Phosphor Bronze strings
• Includes Carrying Case
• Thoroughly inspected & set-up in the USA

HyVibe System

THE WORLD’S FIRST SMART GUITAR, THAT FOLDS IN HALF & FITS IN THE INCLUDED BACKPACK CASE.

Install the HyVibe System into your Voyage Air and transform it into a Smart Guitar!

The Voyage Air with a HyVibe system will take you to a new experience. Your guitar now has its own amplifier that will inspire your music, and change the game in your playing and songwriting with these features: Reverb, Chorus, Delay, Tremolo, Octaver, Phaser, Distortion, and …a Looper! And all customizable. Also features: Standard 1/4″ output and input jacks, rechargeable & replaceable Lithium-ion battery (10+ hours playing time), Tuner, and Metronome…WOW!

With the HyVibe Mobile App, it allows you to build custom effect banks and EQ the Voyage Air’s sound. And if that is not enough, you can connect your HyVibe to a Bluetooth device, and turn your Voyage Air into a connected speaker. Jam along with backing tracks or even stream guitar lessons for an enhanced learning experience.

*Editors Note: Your guitar can be a freaking Bluetooth speaker that will stream backing tracks to jam with, are you kidding me!
